SGS150 Smart Automatic Double Swing Gate opener with Smartphone app (Works with Alexa)

  • ₱39,995.00

An automatic swinging gate opener that uses remote control to open the gate. An optional solar power and built-in batteries can be installed as well. Durable, convenient and waterproof.


Gate Opener Specification
Max.Piston Stroke: 300 mm

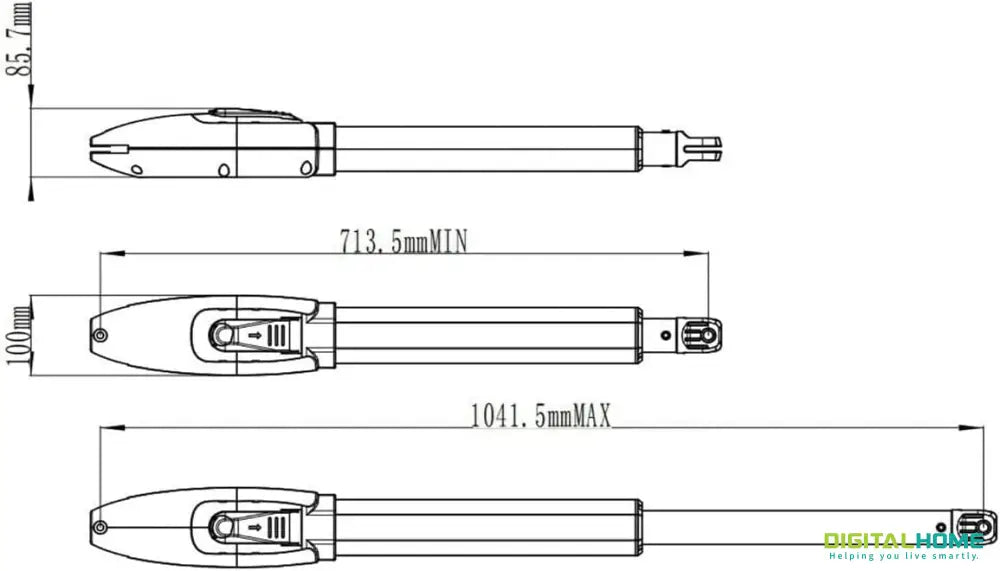

Max.Length of Motor: 1030 mm
Max. Leaf's Weight: 200 killogram/Leaf
Suitable Leaf's Length: 2 meter/Leaf
Frame Housing:Stainless Steel/Aluminum Alloy
Driving Method:Screw Driven Piston Type
Stroke Speed: 4.5 centimeter/sec(1.8 inch/sec)
Opening Degree: 0 to 110 degree
Power: 40w
Temperature: -15 C to 55C

NOTE: Separate cost for the installation

Solar Panel Specification
Type:20W Poly Panel
Rated power: 20W
Maximum/Peak Voltage(Vpm): 29V
Open Circuit Voltage(Voc): 34.8V
Maximum/Peak Current(Ipm): 0.38A
Short Circuit Current (Isc): 0.42A
Temperature Range:- 20Cto +50C
Frame Heavy Duty :aluminum

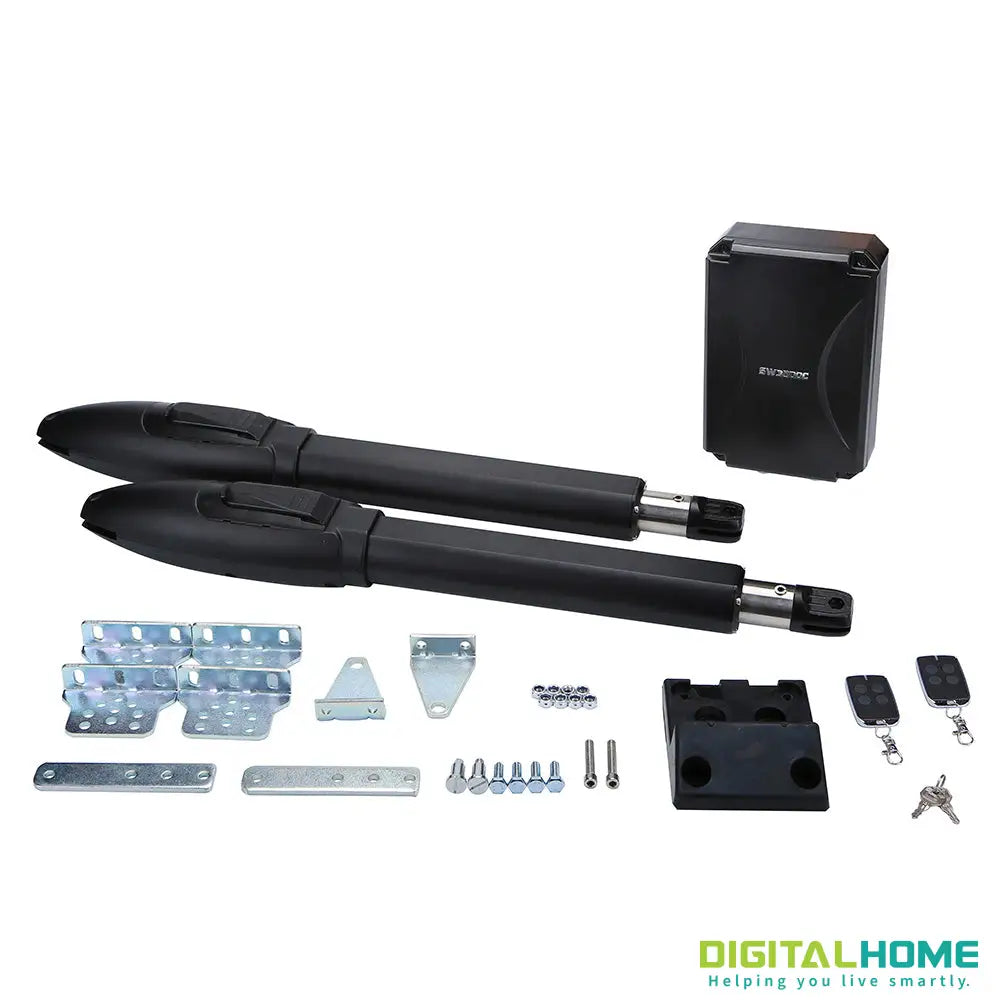

Package Include:
2 PCS Swing Gate Opener Motor
1 PC 11W Poly Solar Panel

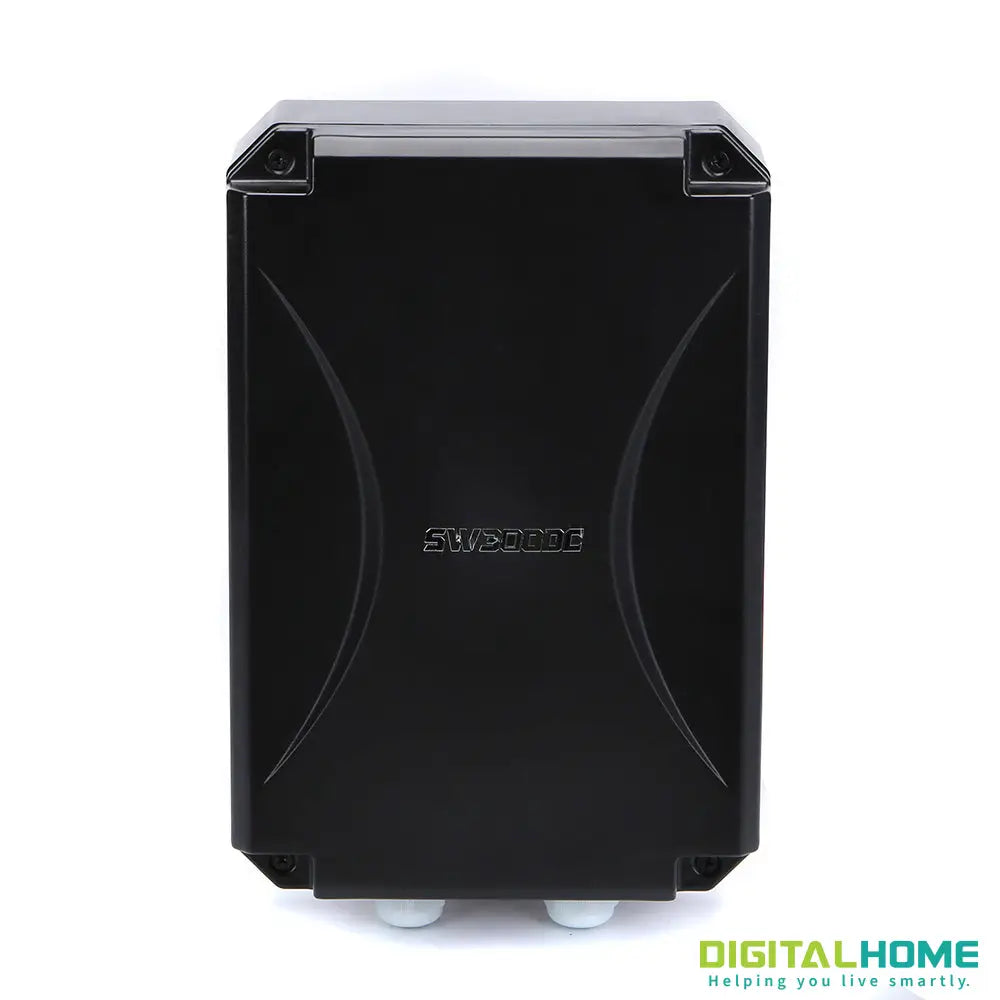

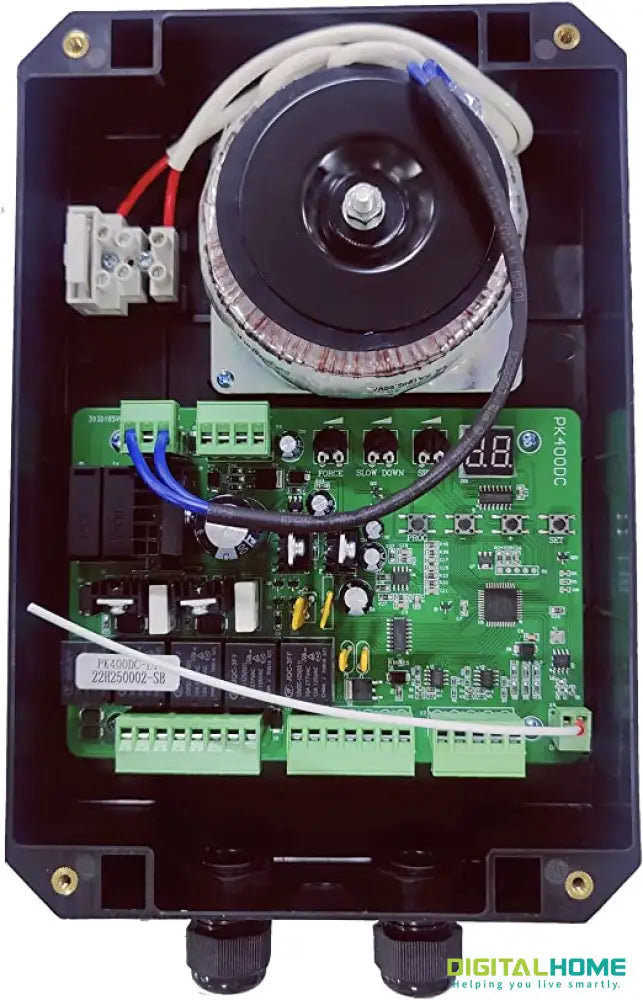

1 PC Intelligent Digital Control Box
2 PCS Remote Controller

Suitable Leaf's Length 1.5 to 2.5m/leaf 2 to 3.5m/leaf
Max Piston Stroke 350mm 450mm
Max Length of motor 1030mm 1255mm
Max. Leaf's Weight 300kg/leaf 250kg/leaf
Frame Housing Stainless Steel/Aluminum Stainless Steel/Aluminum
Driving ethod Screw Driven Piston Type Screw Driven Piston Type
Opening Degree 1 to 110 degrees 1 to 110 degrees
90 Degree Rotation Time 8 to 12 seconds 8 to 12 seconds
Temperature -25C to 55C -25C to 55C


  • With Mobile Application – Open and close the gate using mobile phone. Grant access wherever you are.
  • Power Saving – With solar power and external batteries, you can save electricity (optional)
  • Self-Learning feature – Self-learning feature to detect to full gate open or close.
  • Auto Close feature – this can make your home more secure to close your gate automatically.
  • Waterproof – Made of Aluminum base, copper worm-gear, reliable quality and is completely waterproof

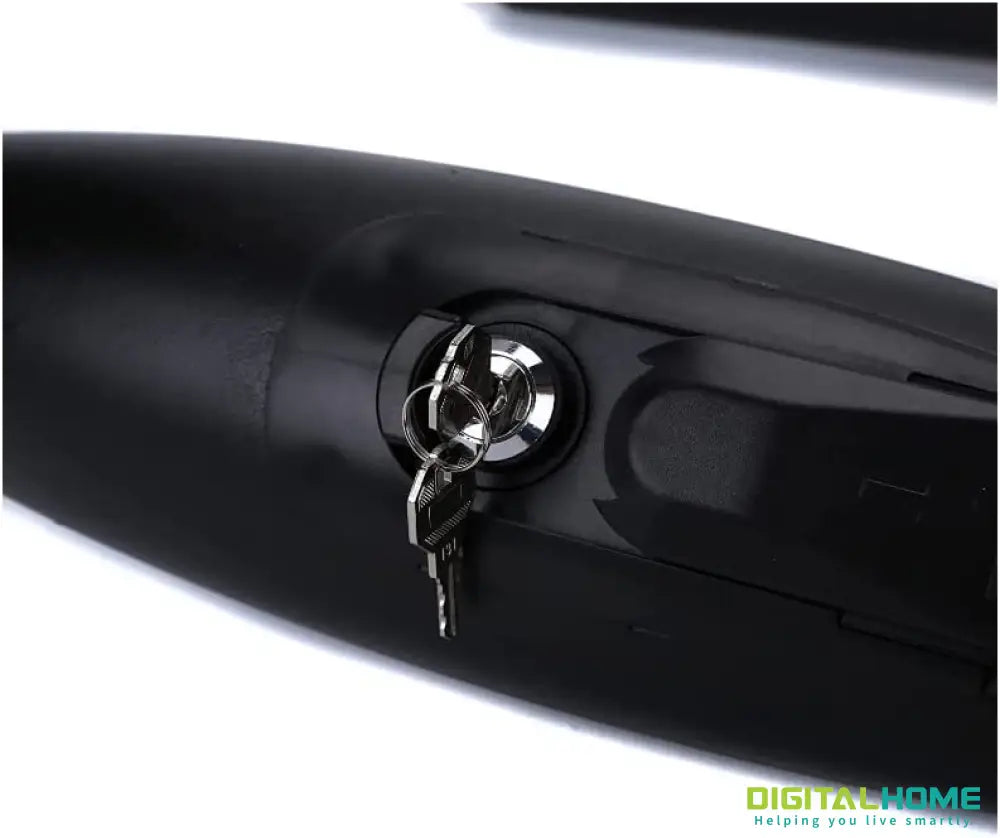

  • Manual Operation: In case of power failure, it can be easily converted to manual operation with a dedicated key, or switched to standby power. (optional)
  • Works with Alexa - voice command to open/close your gate

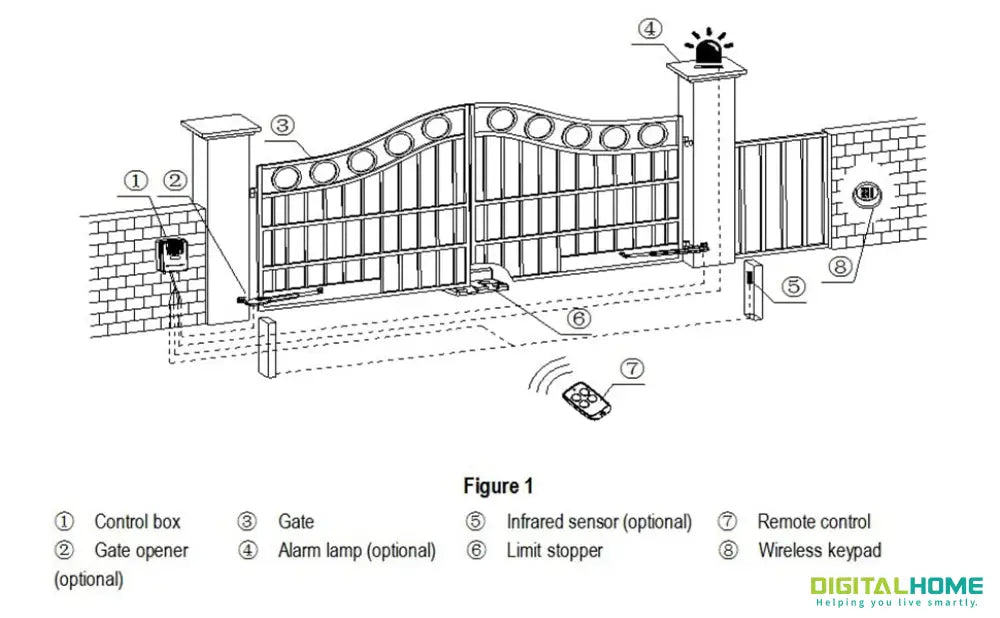

How to install
