DESCRIPTION

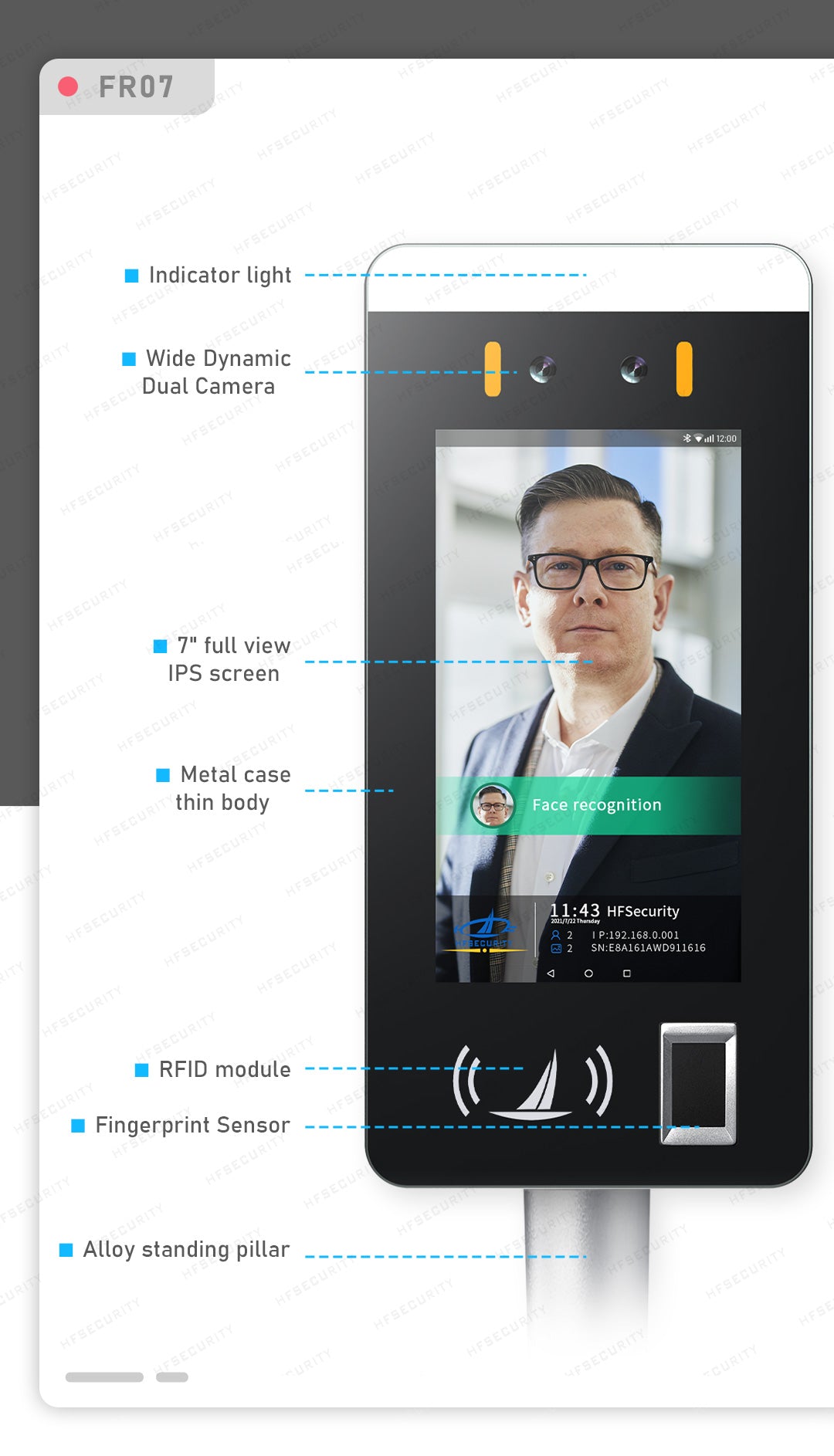

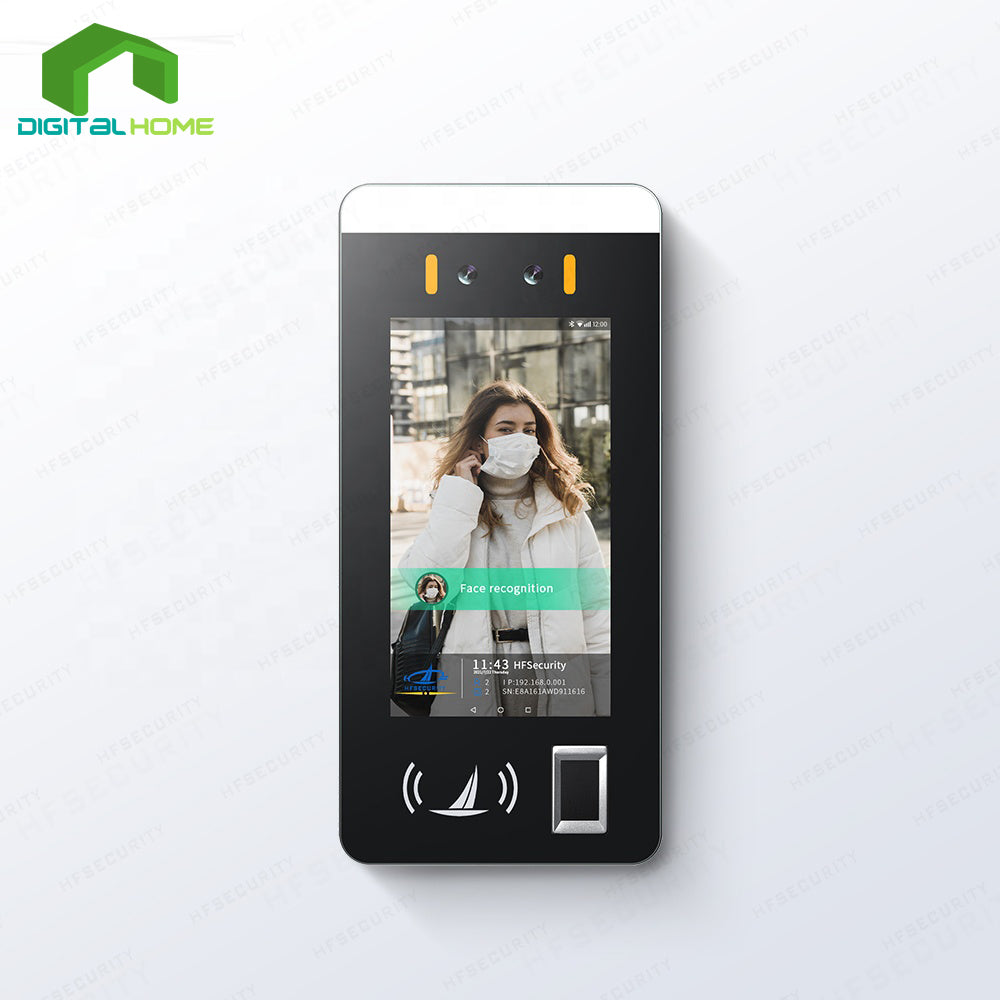

The FR07 Face recognition magnetic door lock is suitable for office doors. It enables you to enter your office with face recognition and RFID Card access. It also has a built-in time and attendance system that can be accessed locally or via a wireless network
Mode of Access
- Face Recognition
- RFID Card
- Fingerprint
- Manual Exit button
FEATURES
-
High Security – a very secure lock that uses facial recognition for entry.
-
High Storage Capacity - Can store up to 2000 face users and 3000 card users (including 10 administrators).
-
Time and attendance – suitable for offices to track the time and attendance of employees that can store 1,000,000 log capacity.
-
Accurate and Fast detection - Using new real-time face recognition tracking algorithm with less than 1second verification speed
- Touch-free Access Control System - After the installation and setting of the access control all-in-one machine is completed, personnel information can be entered and voice broadcasts can be customized. Employees only need to look at the terminal without pressing keys or fingerprints to unlock it, and can automatically recognize human faces to in and out and punch cards.
- Security Verification & Wide Application - 4 unlocking methods: face lock, fingerprint lock, RFID lock, and manual lockWidely used in offices, schools, hospital, factories, hotels, supermarkets, etc., to achieve safe and efficient personnel access control.
DETAILS
Screen: 7 inches screen, full view angle
Resolution: 1024 * 600
Camera: Dual Camera
Focal Length: 0-2m
CPU: 4 cores, 1.8GHz
Memory: 2GB RAM, 8GB ROM
Card Frequency: 13.56MHZ
Network Module: Support wired, wireless (2.4G Wi-Fi)
Serial Communication Interface: RS232/RS485
USB Interface: USB2.0 interfaces, 1 OTG interface
Protection Level: IP64, certain dustproof and waterproof function
Power Supply: DC12V (±10%)
Operating Temperature: -10 ° C ~ 60 ° C
Face memory: 2000
Logs: 1,000,000
Working Humidity: 10% to 90%
Power Consumption: 10W MAX
Device Size: 234(L)*125(W)*24.5(H)mm
Weight: 2.5kg

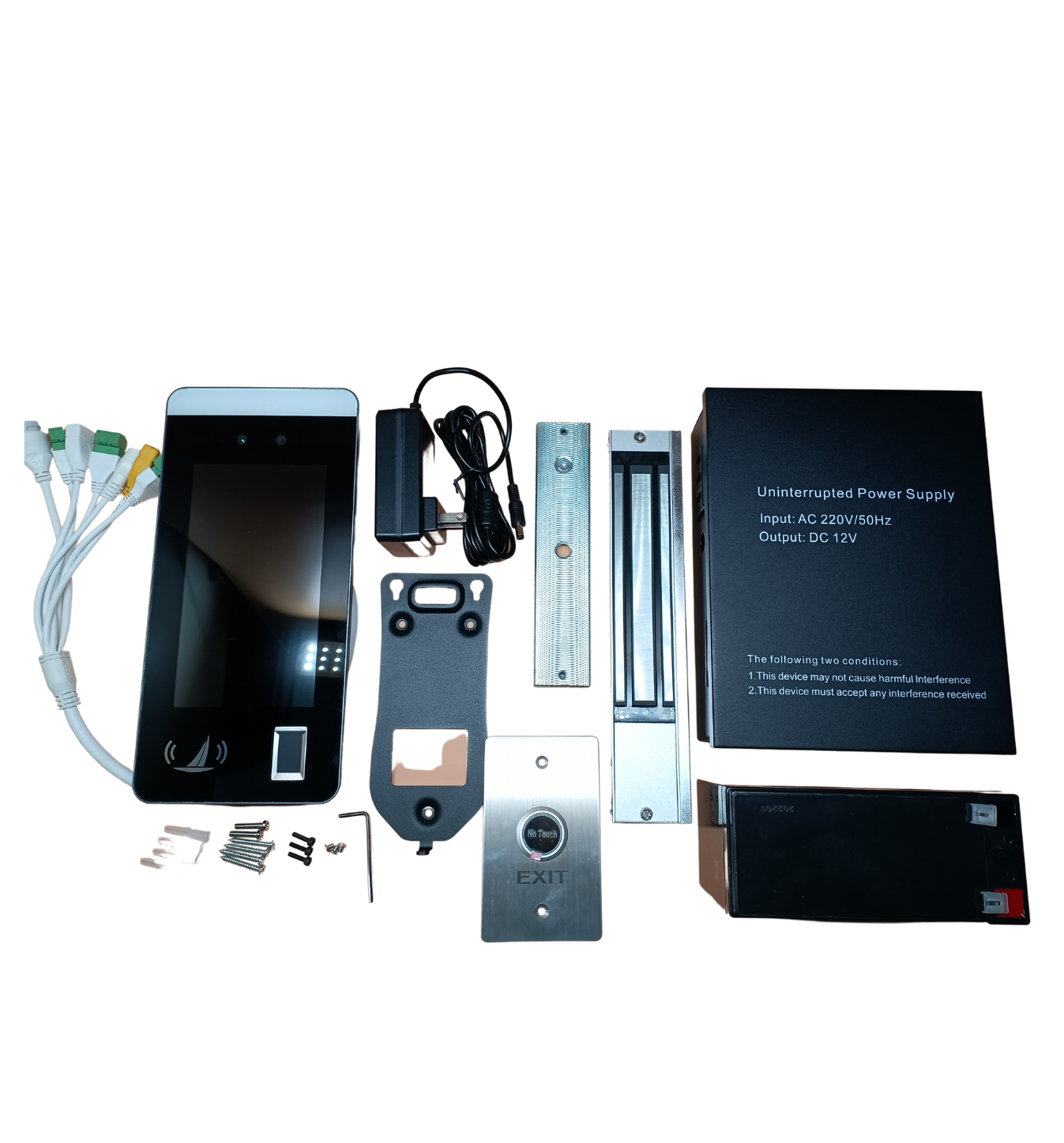

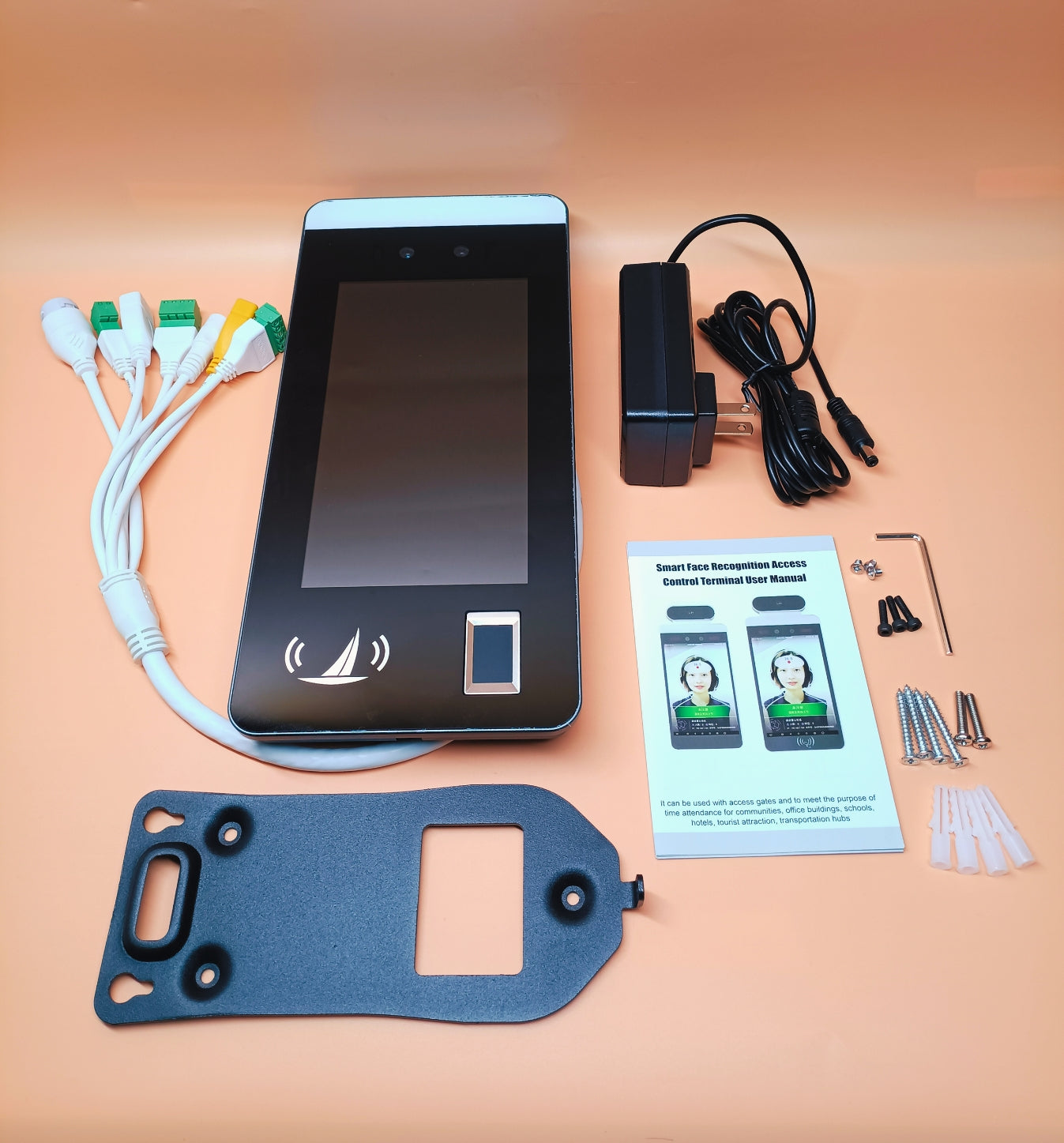

Package included:
- FR07 Controller
- Wall mount
- Power supply
- Exit button
- Magnets
MANUAL
Download manual
