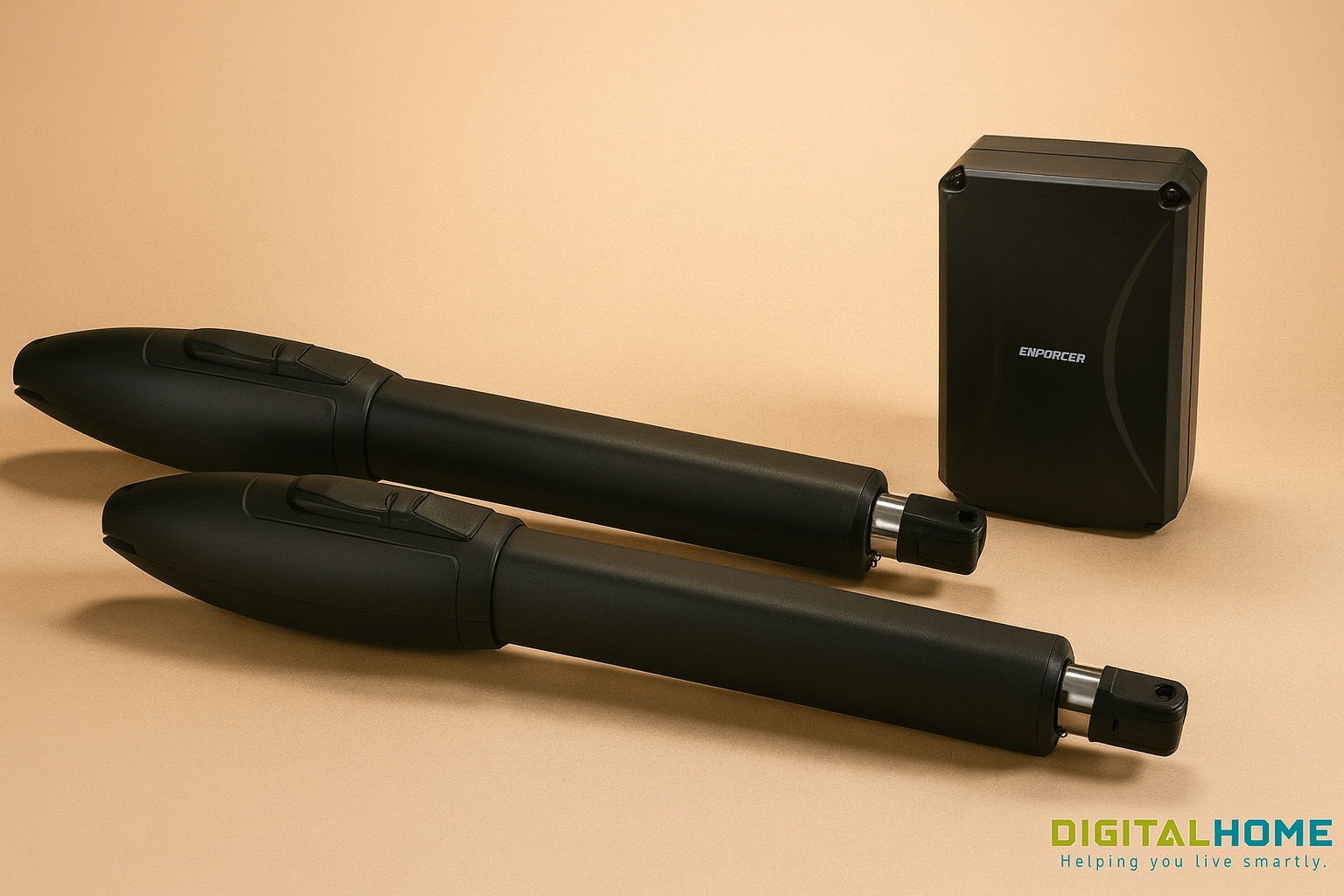

SGS150 Smart Automatic Double Swing Gate opener with Smartphone app (Works with Alexa)
An automatic swinging gate opener that uses remote control to open the gate. An optional solar power and built-in batteries can be installed as well. Durable, convenient and waterproof.
SPECIFICATIONS
Gate Opener Specification
Max.Piston Stroke: 300 mm

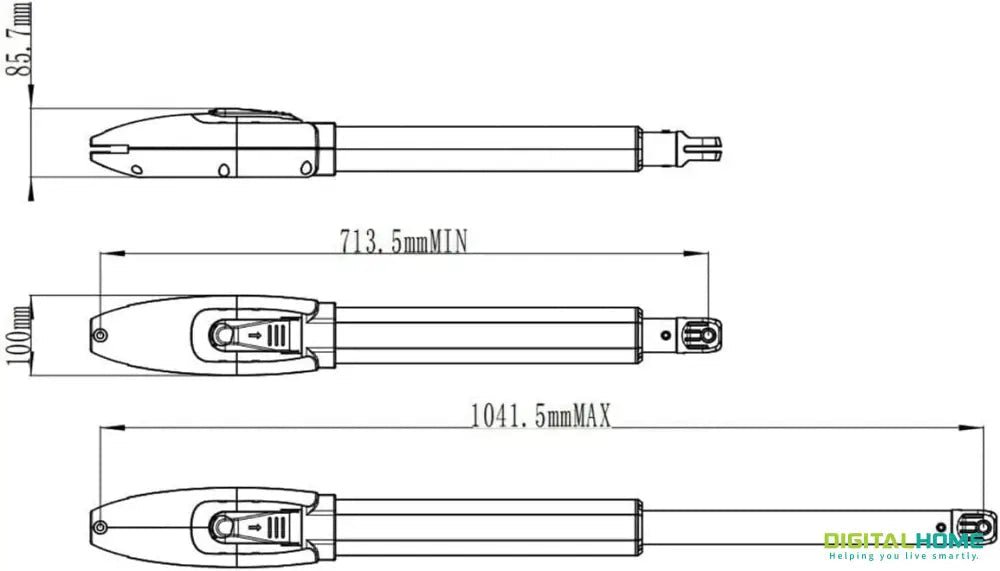

Max.Length of Motor: 1030 mm
Max. Leaf's Weight: 200 killogram/Leaf
Suitable Leaf's Length: 2 meter/Leaf
Frame Housing:Stainless Steel/Aluminum Alloy
Driving Method:Screw Driven Piston Type
Stroke Speed: 4.5 centimeter/sec(1.8 inch/sec)
Opening Degree: 0 to 110 degree
Power: 40w
Temperature: -15 C to 55C
NOTE: Separate cost for the installation
Solar Panel Specification
Type:20W Poly Panel
Rated power: 20W
Maximum/Peak Voltage(Vpm): 29V
Open Circuit Voltage(Voc): 34.8V
Maximum/Peak Current(Ipm): 0.38A
Short Circuit Current (Isc): 0.42A
Temperature Range:- 20Cto +50C
Frame Heavy Duty :aluminum
Size:360x270x18mm(14.2''x10.2"x0.7")

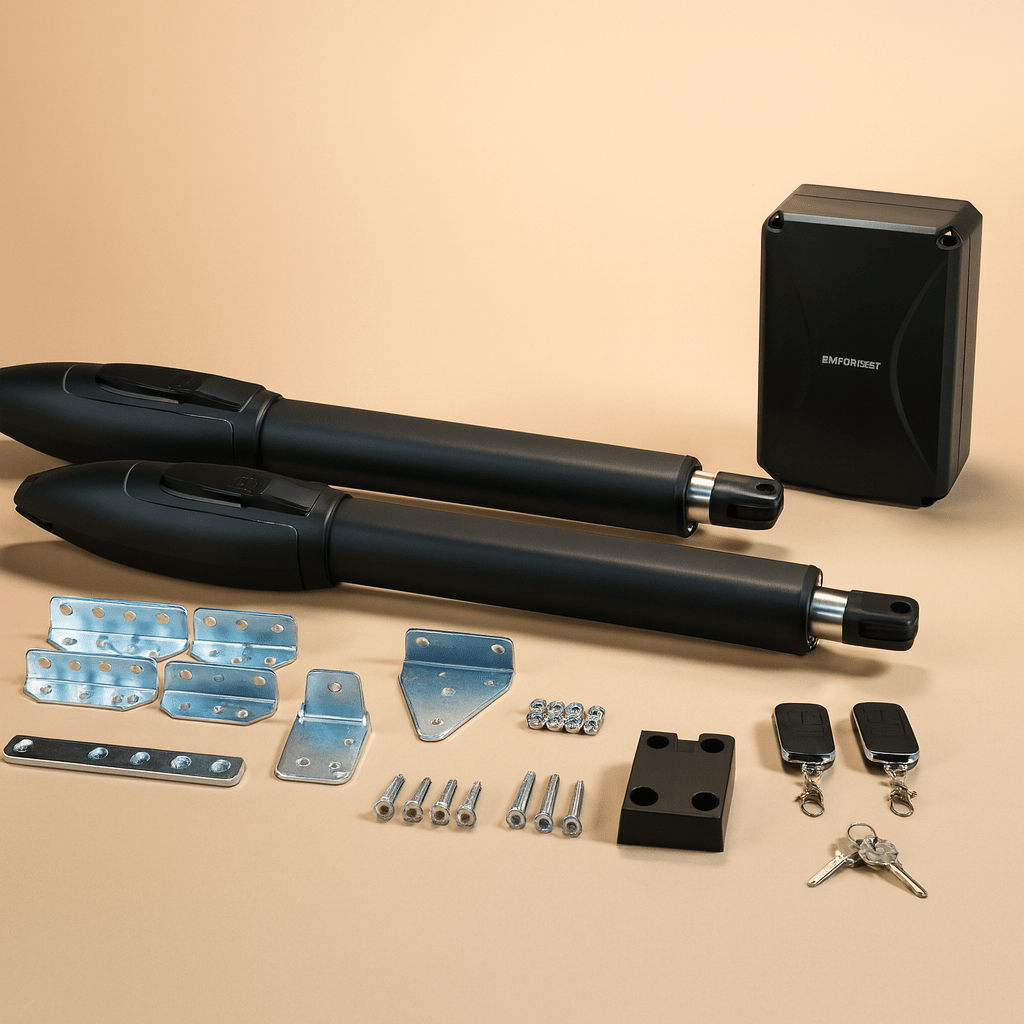

Package Include:
2 PCS Swing Gate Opener Motor
1 PC 11W Poly Solar Panel

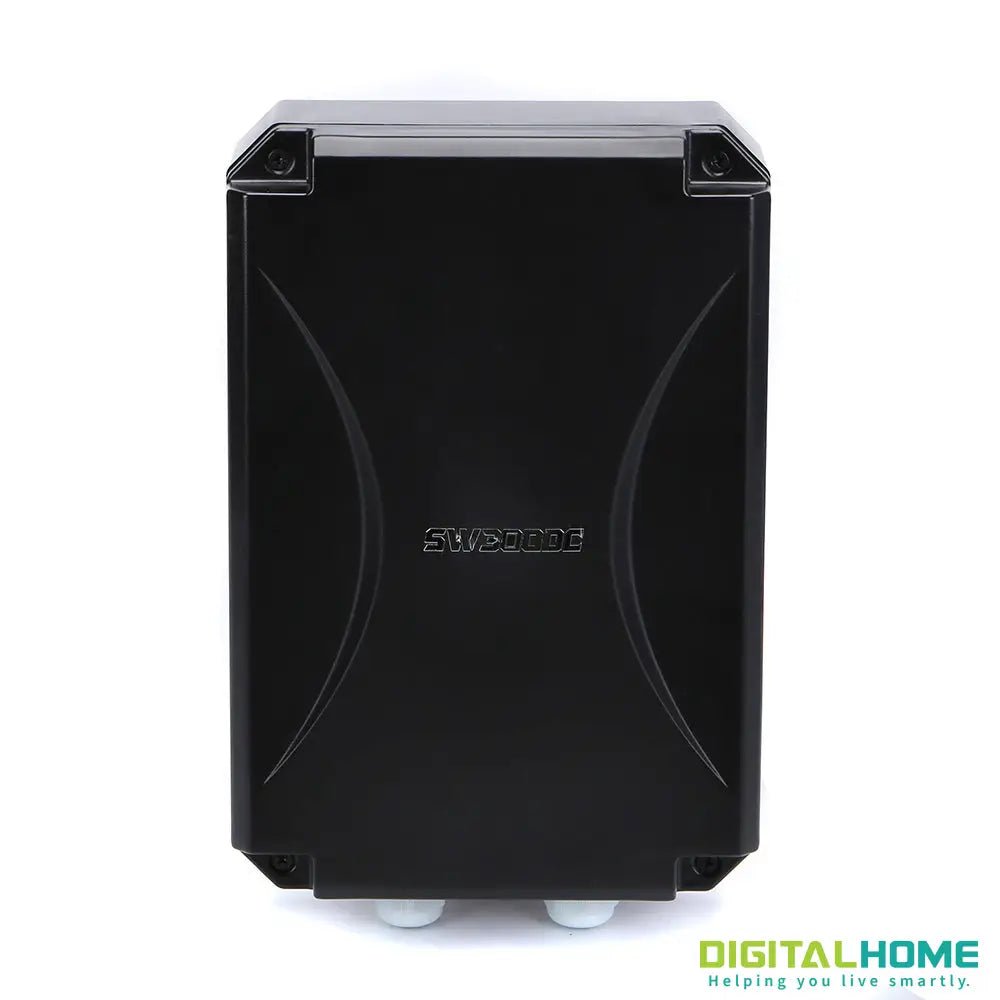

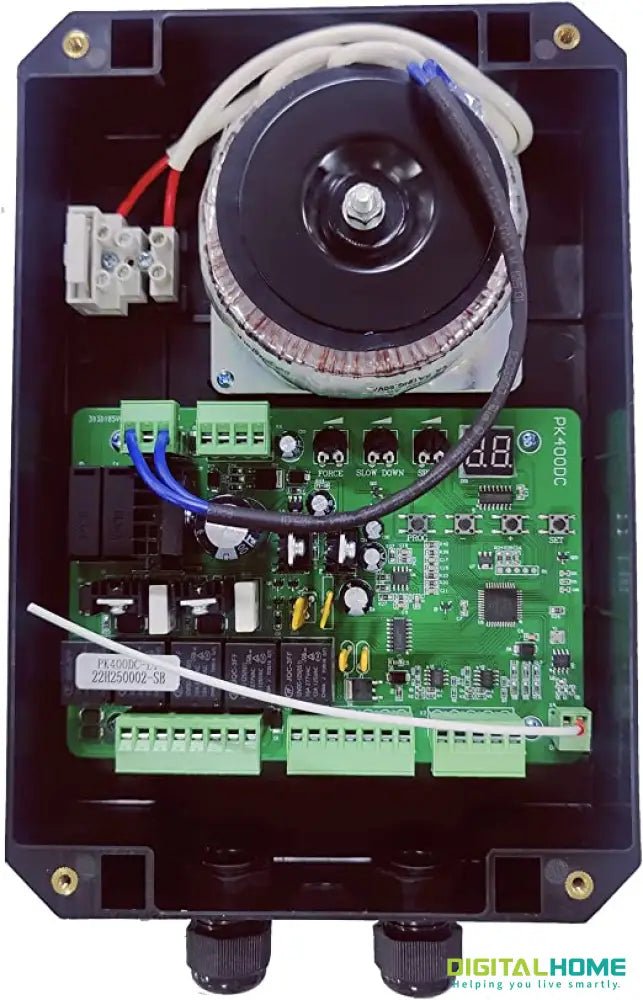

1 PC Intelligent Digital Control Box
2 PCS Remote Controller
| Suitable Leaf's Length | 1.5 to 2.5m/leaf | 2 to 3.5m/leaf |
| Max Piston Stroke | 350mm | 450mm |
| Max Length of motor | 1030mm | 1255mm |
| Max. Leaf's Weight | 300kg/leaf | 250kg/leaf |
| Frame Housing | Stainless Steel/Aluminum | Stainless Steel/Aluminum |
| Driving ethod | Screw Driven Piston Type | Screw Driven Piston Type |
| Opening Degree | 1 to 110 degrees | 1 to 110 degrees |
| 90 Degree Rotation Time | 8 to 12 seconds | 8 to 12 seconds |
| Temperature | -25C to 55C | -25C to 55C |
FEATURES
- With Mobile Application – Open and close the gate using mobile phone. Grant access wherever you are.
- Power Saving – With solar power and external batteries, you can save electricity (optional)
- Self-Learning feature – Self-learning feature to detect to full gate open or close.
- Auto Close feature – this can make your home more secure to close your gate automatically.
- Waterproof – Made of Aluminum base, copper worm-gear, reliable quality and is completely waterproof

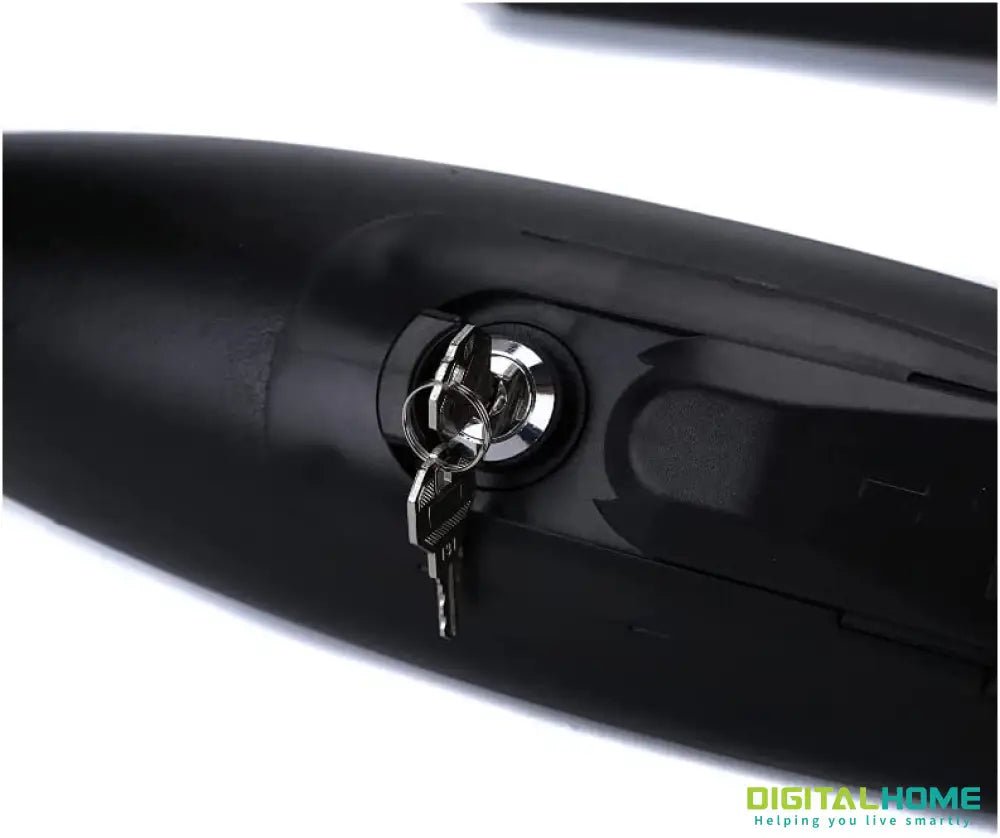

- Manual Operation: In case of power failure, it can be easily converted to manual operation with a dedicated key, or switched to standby power. (optional)
- Works with Alexa - voice command to open/close your gate
VIDEOS
How to install
